DC motor D425 seriesbrushless24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 48 V
- Configuration
- NEMA 17
- Number of poles
- 8-pole
- Power
Max.: 100 W
(0.136 hp)Min.: 31 W
(0.042 hp)- Torque
Max.: 0.96 Nm
(0.7081 ft.lb)Min.: 0.1 Nm
(0.0738 ft.lb)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)
Description

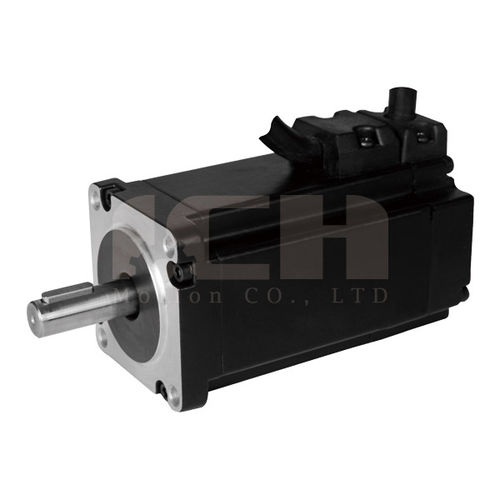

42mm Brushless DC Motor
• Manufacturer Part Number: D425
• Motor Type: Internal Rotor Brushless DC Motor
• Frame Size: 42x42mm BLDC Motor Nema 17 Mounting
• Eletric BLDC Motor Speed: 3000RPM
• Shaft Type: Single Shaft or Double Shaft
• Application: Mixer Motor
