Unmanaged ethernet switch NS series

8 ports5 ports16 ports

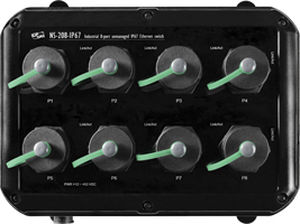

Automatic MDI/MDI-X crossover for plug-and-play Store-and-forward architecture Each port supports both 10/100 Mbps speed auto negotiation Full duplex IEEE 802.3x and half duplex backpressure flow control Rugged RJ45 Connector for anti-vibration and shock IP67 grade protection approval 4 PoE ports with Power Sourcing Equipment (PSE) operation (NS-205PSE-IP67 series) Auto-detection of PD (powered devices) and automatic power management (NS-205PSE-IP67 series) Over-temperature, over-current and over/under-voltage detection (NS-205PSE-IP67 series) The NS-205PSE-IP67/NS-205-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The NS-205PSE-IP67 PoE switch provide 5 fast Ethernet with 4 IEEE 802.3af compliant PoE ports. The switch is classifi ed as power source equipment (PSE) and provide up to 15.4 W of power per port. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
