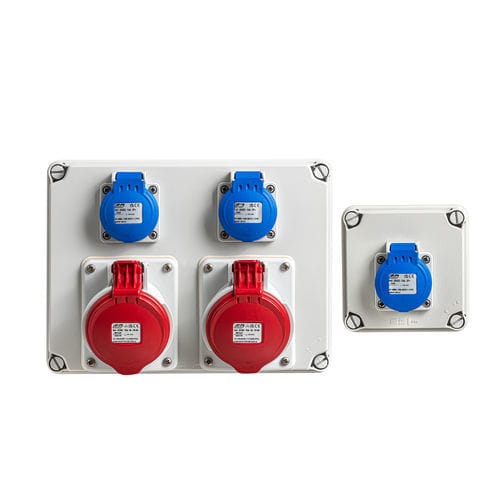

Equipped electrical enclosure / wall-mounted / polystyrene / for low-voltage power distribution
Junction boxes IDE ELECTRIC, S.L.

Characteristics

  • Type:

    equipped

  • Configuration:

    wall-mounted

  • Material:

    polystyrene

  • Application:

    for low-voltage power distribution

  • Other characteristics:

    with electrical socket, waterproof

  • Width:

    Min.: 108 mm

    Max.: 180 mm

  • Height:

    Min.: 108 mm

    Max.: 241 mm

  • Depth:

    Min.: 64 mm

    Max.: 95 mm

Description

IP65-IP67 Junction boxes

The LIGHT series is a set of watertight surface boxes intended for electrical junctions or for watertight trunking boxes.

They can also be used to build electrical or electronic switchboards. With the right
accessories, small terminal junction boxes can be built, and power sockets can be used to create small electric power supply blocks.

This series is completed with the motorprotection and electrical and electronic protection
boxes for machine tools or similar applications.
