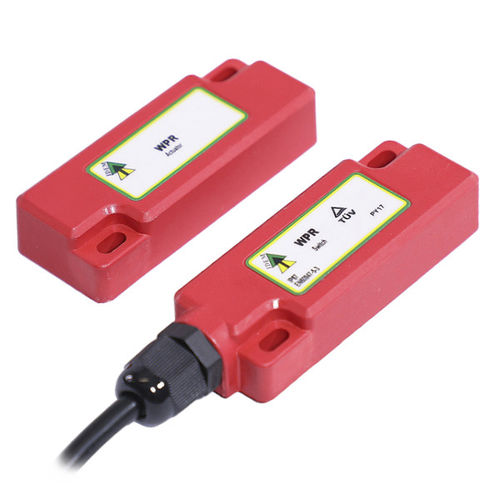

Single-pole switch WPR
IECheavy-dutyhigh-temperature

single-pole switch
single-pole switch
single-pole switch
Add to favorites
Compare this product


Characteristics

Number of poles
single-pole
Protection level
IEC, heavy-duty, high-temperature, IP67, IP69K
Other characteristics
AC, DC, contactless, magnetic, safety
Primary current

1 A, 2 A

Voltage

24 V, 230 V

Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 80 °C
(176 °F)

Description

IDEM’s magnetic, non-contact safety interlocks are designed to conform to IEC 60947-5-3 and be used as directed by ISO12100, ISO14121 and ISO14119. They feature magnet and reed technology, providing a high tolerance to misalignment and extreme temperatures. The mechanical operations means the contacts are volt free with a high power switching capability of 1A or 2A ac/dc. They are suitable for hinged, sliding or removable guard applications and can connect to most safety relays to provide a higher level of functional safety. Features: • Housing/Fixing: Robust Wide Housing • Material: High spec polyester, ideal for exposure to chemical cleaning agents • Contacts: Up to 2 N/C safety outputs and 1 N/O auxiliary output. • Sensing Distance: Wide 12mm operation • Connection: Pre-Wired or M12 8-Pole Quick Connect
