power amplifier / electronic / digital

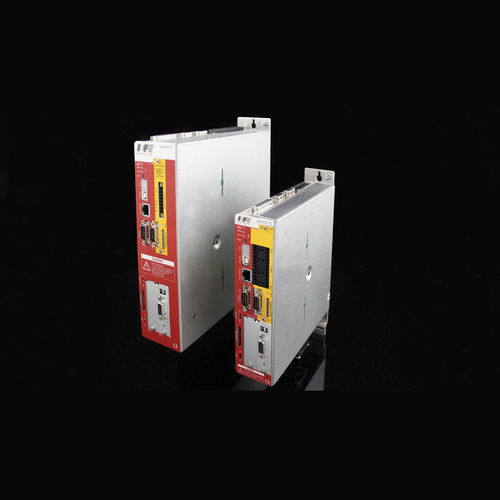

LV-servoTEC S2 FS IEF-Werner GmbH

{{requestButtons}}

Characteristics

  • Type:

    power

  • Other characteristics:

    electronic, digital

  • Voltage:

    24 V

  • Current:

    2.5 A, 5 A, 10 A

Description

The intelligent AC-servo converter with integrated positioning control LV-servoTEC S2 FS enables extensive parameter setting possibilities for the flexible adaption to your application. The menu-driven parameter setting software S2 Commander and the automatic motor identification guarantee a fast and comfortable integration into automation systems.

Features
output power up to 12 kVA
self-adapting motor controller
configurable encoder interface for resolver, incremental encoder, absolute value encoder single-/multiturn
torque or speed control, positioning, synchronous operating modes
CAN interface integrated in basic device
special CAN-loopthrough modules in connection with several motor controllers
automatic recognition of the controller in the PA-CONTROL network
PC parameterisation via S2 Commander or WINPAC
configured motor data base
integrated EMC filter and brake chopper
integrated power factor control to avoid circuit feedback (1-phase device)
controlling via digital I/O
safety functions "Safe Torque Off" (STO) and safely reduced speed (MOV)
CE and UL certified
