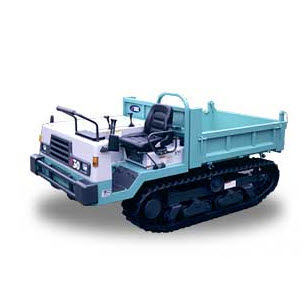

Crawler dumper IC30 seriesdiesel
Add to favorites
Compare this product
Characteristics
- Locomotion
- crawler
- Motor type
- diesel
- Payload
2,500 kg
(5,511.56 lb)
Description
IC30
Payload 2500kg 5,512 lbs
Operating weigt 2100kg 4,630 lbs
Travel speed Low 6/11km/h 3.7/6.8 mph
High 6/11km/h 3.7/6.8 mph
Gradeability 30°
Side stability 45°
Machine
dimensions Total length 3160mm 124.4"
Total width 1700mm 66.9"
Total weight 1580mm 62.2"
Engine Model Isuzu 3LD1
Rated output 23.5kW(32PS)
/2800min-1 31.5 HP/2800min-1
Cycles-displacement 3-1496cc
