IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages including all required accessories.

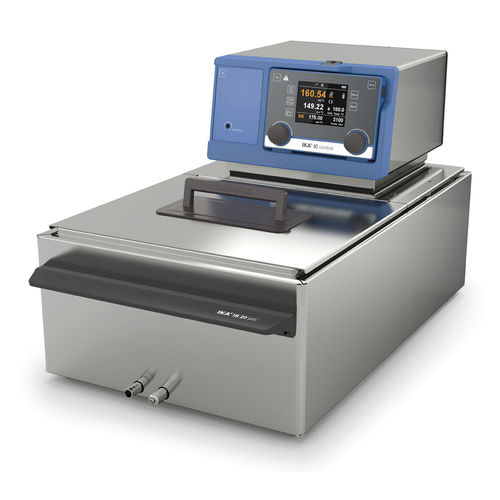

Package includes
• IC control immersion circulator
• IB 20 pro stainless steel bath (size L)
• PT 100.30 temperature sensor
• CC1 cooling coil (already included in IC control device)
• CL.IC large cover
• BS.IC small bridge
total: 354 x 641 x 359 mm
bath opening: 255 x 262 mm *
max. bath opening: 292 x 278 mm **
Immersion depth. 95 mm–135 mm
*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the stainless steel bath (“pro” series): 200 °C
Technical data relates to the temperature control instrument included in the package
