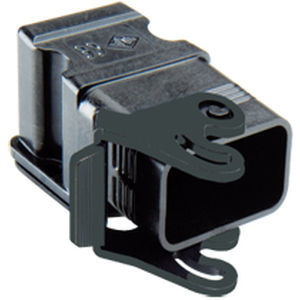

Electric connector housing CQS 08 IAIP69EMCplastic
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Protection level
- EMC, IP69
- Other characteristics
- plastic
Description
Brief description: Angled mounting housings with 1 lever, size "32.13", without cable gland, EMV version, IP66
CQS enclosures:
- metallized thermoplastic enclosures
- when using EMC CQS 08 series enclosures, please remove the gasket from the male insert and replace it with the CR 08 EMC conductive gasket
- CQ 08 IAP/V/VG version with Pg male thread on outside of enclosure
TECHNICAL DETAILS
Product description
VersionEMC version
SeriesAngled mounting housings with 1 lever
Product typeWith 1 lever
VariantWithout cable gland
FamilyCQ enclosures
SizeSize "32.13"
Technical data
Operating temperature range (min, max)-40°C … +125°C
MaterialThermoplastic
IP degree of protectionIP66 (and IP69 DIN 40050 - 9)
Further technical details
Weight36,00 g
Approvals / Standards
Quality mark (type:12), EAC
ConformityCQC, CE
General ordering information
EAN13 code8015747175128
Tariff number85369095
