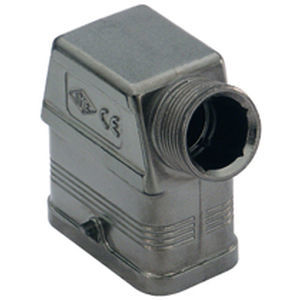

Brief description: Hoods with 2 pegs, size "32.13", side entry, EMV version, Pg16, IP66
CQS enclosures:
- metallized thermoplastic enclosures
- when using EMC CQS 08 series enclosures, please remove the gasket from the male insert and replace it with the CR 08 EMC conductive gasket
- CQ 08 IAP/V/VG version with Pg male thread on outside of enclosure
TECHNICAL DETAILS
Product description
VersionEMC version
SeriesHoods with 2 pegs
Product typeWith 2 pegs
VariantSide entry
FamilyCQ enclosures
SizeSize "32.13"
Technical data
Operating temperature range (min, max)-40°C … +125°C
MaterialThermoplastic
IP degree of protectionIP66 (and IP69 DIN 40050 - 9)
Cable entryPg16
Further technical details
Weight27,00 g
Approvals / Standards
Quality mark (type:12), EAC
ConformityCQC, CE
General ordering information
EAN13 code8015747095143
Tariff number85369095
