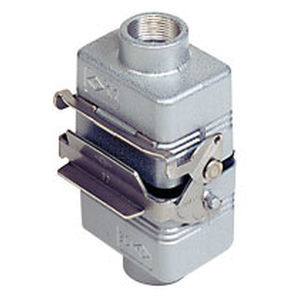

Data connector CNLZ 06 VGDINrectangularlocking
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Shape
- rectangular
- Connection type
- locking
- Electrical characteristics
- 6-pole
- Material
- metal
- Protection class
- IP69K, IP66
- Primary current
16 A
- Voltage
500 V
Description
Brief description: CNZ complete connectors 16A max - 500V (screw), 6 poles, hoods with single lever, hoodhood side entry
TECHNICAL DETAILS
Product description
SeriesCNZ complete connectors 16A max - 500V (screw)
Product typeHoods with single lever, CNE series inserts,with screw connection terminals hood side entry
FamilyComplete connectors
SizeSize "44.27"
N. of poles6 poles +
Technical data
Current16 A
Voltage500 V
Rated impulse withstand voltage6 kV
Pollution degree3
Wire cross-section0,50 mm² - 2,50 mm²
AWG size20 - 14
MaterialMetal
Contact materialSilver plated
IP degree of protectionIP66 (and IP69 DIN 40050 - 9)
Cable entryPg16
Further technical details
Weight340,00 g
Approvals / Standards
Reference standardEN 61984:2009-06
General ordering information
EAN13 code8015747119108
Tariff number85369095
