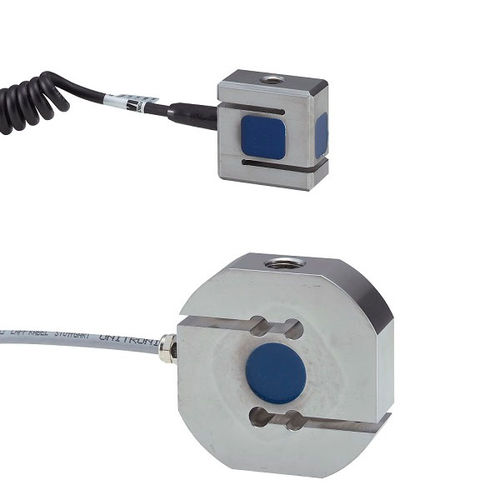

Tension/compression load cell Waterproof and Dust-proof Load Cell SW series

S-beamstrain gaugeanalog

Specifications -You can use it for both tension and compression -It ranges widely in capacity from 100N to 5000N (SW1 series) or from 10kN to 20kN(SW3 series) -It offers high accuracy: +/-0.5%F.S. Feature : SW series load cell is designed especially for incorporation into equipment/facilities in/near water or dusty place. -It is classified IP 67(*1). -The sensor has 2 female screws, enabling you to install it easily into your equipment/facilities. -The length of connecting cable is approx. 0.5m to 2m (SW1, curl cable) or approx.5m (SW3). *1 IP code indicates the degree of waterproof, dustproof, etc. IP67 means “Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.” and “Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1m of submersion).”AmplifierWe offer 4 kinds of amplifiers. Handheld models feature the portability while the desk top model features the easy incorporation.1.Handheld model (Advanced): ZTA series2.Handheld model (Standard): ZTS series3.Sensor interchangeable model: eZT4.Desk top model: FA PlusYou can also interlock it with your equipment/facilities easily due to various input/ output function. - They can handle I/O via USB, RS232C, Analog, and more- They can output OK/NG judgement, Peak hold, Overload We have confidence to offer the best force measurement solution using know-how accumulated over 65 years, so don’t hesitate to contact us if you have any concerns.
