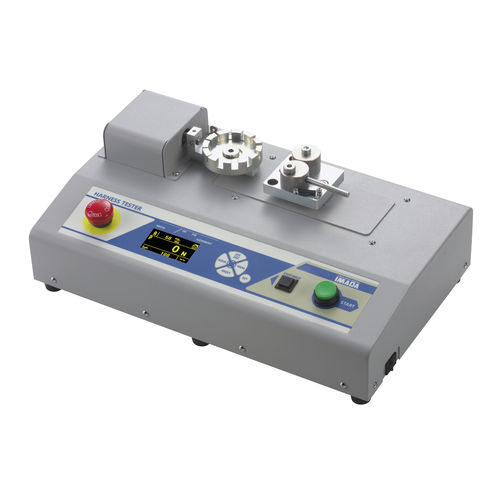

Crimp tester Automatic Crimp Tester ACT-1000N

tension forcefor wire terminalsindustrial

ACT-1000N is automatic crimp tester with 1000N capacity. It performs crimp test automatically from testing to storing the data by simply pressing start button which enhances the testing efficiency. Feature • - Perfect solution for automatic crimp testing • - Realizes efficient testing with one-button operation, providing smooth flow from testing to data saving including OK/NG (pass/fail) judgement • - 2 modes selectable : BREAK mode for destructive test and KEEP mode for nondestructive test to apply specific force in set time • - Capable of saving up to 26 test patterns, immediately recallable to suit various samples • - Complies with the corresponding part of UL and JIS standards Standards • - UL 486A-486B (2013) [Standard for Safety for Wire Connectors,9.3.4 Pullout test] (corresponding part only) • - JIS C　2805 (2010) [Crimp-type terminal lugs for copperconductors] (corresponding part only) • - JIS C 5402-16-4 (2012) [Connectors for electronicequipment-Tests and measurements-Part 16-4: Mechanical tests on contactsand terminations-Test 16d: Tensilestrength (crimped connections (corresponding part only)
