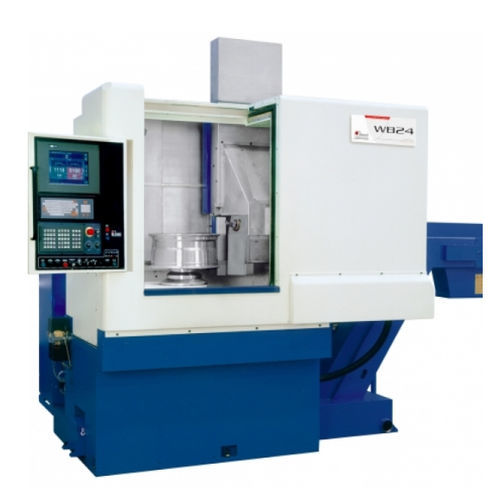

CNC lathe / vertical / 2-axis / high-speed
WB24 IMT INTERMATO S.P.A.

{{requestButtons}}

Characteristics

  • Control type:

    CNC

  • Spindle orientation:

    vertical

  • Number of axes:

    2-axis

  • Other characteristics:

    high-speed

  • Applications:

    for wheels

  • Diameter:

    Min.: 0 in

    Max.: 24 in

  • Spindle speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 2,500 rpm (15,707.963 rad.min-1)

Description

The WB24 model is manufactured by IMT Intermato, and is a 2-axis CNC vertical lathe that has a proven asymmetric turning capability, which has a dynamic and static balancing systems integrated into the base generating high speed detection systems. It also comes from the increasingly stringent tolerance reduction of vehicle manufacturers to produce increased quality wheels.

The unit has a maximum turning diameter of 24 inches, which has a maximum admitted diameter of 800 mm. It has an X-axis and Z-axis stroke of 500 mm, which has an asymmetric machining U axis stroke of 30 mm.
