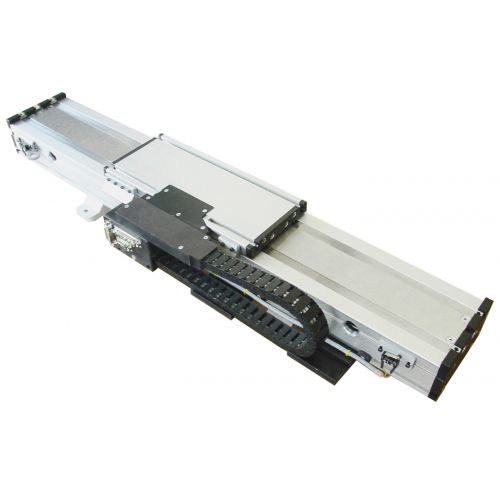

Linear actuator LSS-120

electricdouble-rodwith servo-motor

- Turn-key solution linear motor solution - Modular design - High speed and acceleration - Zero backlash - Integrated cable track - Low profile The Direct Drive Linear ServoSlide system is a direct drive actuator that eliminates wear, friction, backlash and compliances associated with mechanical transmissions, such as ball/lead screws, rack & pinion, belts/pulses and gearboxes Linear Motor Forcer features non-contact design and low cogging for fast and accurate positioning Carriage support double rod bearing system is integrated into the slide to support moving carriage and to provide dynamic stiffness and precise straightness of travel. Bearing rollers are magnetically preloaded by the carriage against magnet track Integral Linear Encoder provides precision non-contact linear position feedback with resolution 1 microns Limit and Home sensors establish end of travel and "home" positions Cable Transport Module with high flex robotic cable is installed and pre-wired to the amplifier Mounting of the actuator can up-side down and vertically with optional linear brake Multi-axes Gantry and XYZ arms can be easily constructed using Linear Servo Slides
