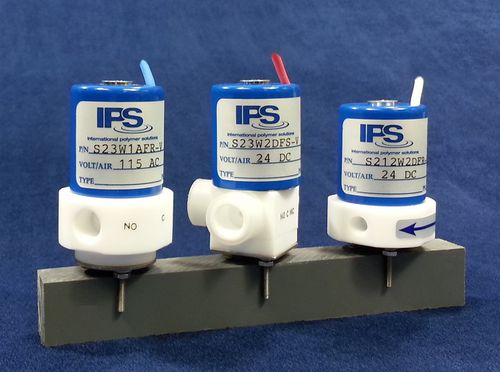

Subminiature solenoid valve S12 series2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC, NO
- Body
- PTFE, subminiature
- Other characteristics
- for corrosive environments, diaphragm
- DN
Max.: 0.25 in
Min.: 0.063 in
- Voltage
12 V, 24 V, 115 V
Description
2-Way PTFE Subminiature Solenoid Valve configuration options:
* Nine Port Styles to choose from: #10-32-UNF, 1/4"-28-UNF, 1/16" FNPT/Tube, 1/8" FNPT/Tube, 1/4" FNPT/Tube/Flare
* Four Actuation Coils to choose from: 115VAC, 24VAC, 12VDC, or 24VDC
* Four O-Ring Seat Seals to choose from: EPDM, Viton, Alfas or Kalrez
* Two Body-Port Configurations: Normally Closed and Normally Open
The all PTFE wetted design is ideally suited for semiconductor, pharmaceutical, bio-medical and chemical process applications where ultraclean and highly corrosive media are present.
