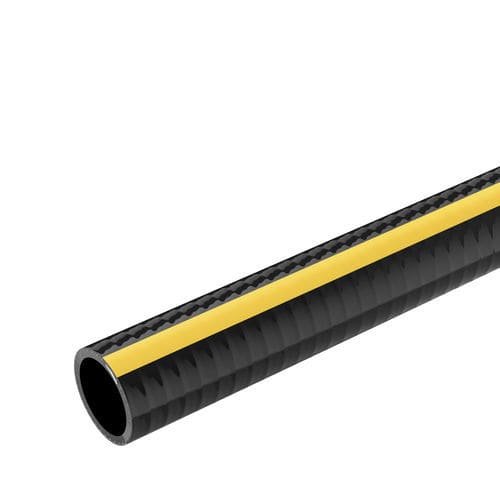

Water hose PLUTONE PW
PVCwith polyester reinforcementsuction

water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
PVC, with polyester reinforcement
Applications
suction, discharge, low-temperature
Other characteristics
flexible, smooth, reinforced, spiral wire
Inner diameter

Min.: 20 mm
(0.787 in)

Max.: 102 mm
(4.016 in)

Outer diameter

Min.: 29 mm
(1.142 in)

Max.: 118 mm
(4.646 in)

Pressure

Min.: 7 bar
(101.526 psi)

Max.: 14 bar
(203.053 psi)

Temperature

Min.: -25 °C
(-13 °F)

Max.: 60 °C
(140 °F)

Delivered length

20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )

Description

Color: Black with yellow stripe Diameter range: 20x29-102x118 Features: Black hose with yellow stripe made by a special PVC-P compound, with steel helix and polyester textile reinforcement. Smooth, flexible and easy to handle, it resists at low temperatures. It can be made conductive (R<102 Ohm/m) by grounding the spiral. Application: Suction and discharge of water and liquids
