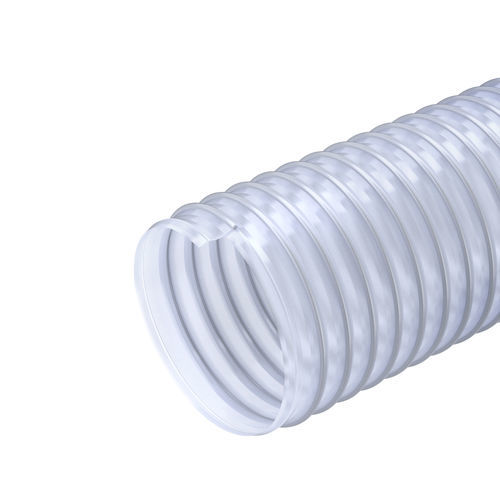

Food-grade hose VULCANO 09 ETfoodstufffor powdersTPU
Add to favorites
Compare this product
Characteristics
- Use
- foodstuff, for powders
- Material
- TPU
- Applications
- suction, for pneumatic conveying, transfer, cleaning, for vacuum, heavy-duty, for suction units, for the pharmaceutical industry, food-grade, for the food industry
- Other characteristics
- UV-resistant, abrasion-resistant, spiral wire, chemical-resistant, weather-resistant, with smooth inner surface, translucent, microbe-resistant, hydrolysis-resistant, vacuum, for bulk materials, polyurethane-coated, for dry bulk materials, reinforced, for abrasive products
- Inner diameter
Max.: 500 mm
(19.685 in)Min.: 20 mm
(0.787 in)- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Delivered length
6 m, 10 m, 15 m, 20 m
(19'08" , 32'09" , 49'02" , 65'07" )
Description
COLOR:
Translucent with high adhesion TPU coated steel spiral grey
FEATURES
Ether based food grade polyurethane hose reinforced with PU coated high adhesion steel wire. Smooth inside to ensure optimization of flow properties. Constant Wall thickness of 0,9 mm for the whole diameter range.
Resistant to microbes and to hydrolysis. Excellent against ozone and weather. Suitable to deliver dry food stuffs according to the EU Regulation 10/2011 (for further details see the Information Sheet) and with FDA, title 21 CFR 177.2600, classes D, F, E
The hose is odourless and doesn’t change the organoleptical properties of the transferred materials, ensures very good bending radius even at low temperatures without reducing the flow capacity. Halogen free, conform to RoHS regulations. It can be made conductive by grounding the spiral.
APPLICATION:
Food processing and pharma plants and anywhere resistance to microbes is required.
