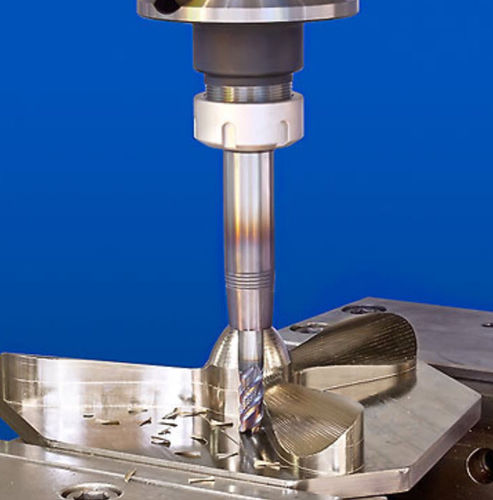

HSK tool holder SHRINKIN

BTCATDIN 69871

Integral SHRINKIN Chucks Preset screws in all sizes to adjust the required length for fixed position 10 mm (3/8”) range. Special high alloy H13 steel with high thermal shock resistance over 500°C (930°F). Features: High accuracy run out OD-ID 0.003 mm (.00012") Powerful clamping with high friction force. High stiffness due to one solid piece. Symmetrically balanced design for high speed G2.5, 25,000rpm <1g X mm. (An optional balancing correction may be accomplished by 4 threaded holes in the nose circumference). Prolonged tool life due to its low heating temperature and better rigidity, accuracy and stiffness. Slim design with a 4.0° nose angle, according to DIN69882-8 standard. The INTEGRAL SRKIN chucks are designed for tools in the diameter range of 6-32 mm (1/4 - 1 1/4”) for shanks with h6 tolerance for heavy milling operations. The ER… SRK are intended for high speed machining using tools in the 3-12 mm (1/8 - 1/2”) diameter range on a standard collet chuck, or milling heads on turning centers. Heating Units: For the ER…SRK we will continue to offer our compact unit: SHRINKIN UNIT - EUR / SHRINKIN UNIT - USA. For the INTEGRAL SRKIN there is an induction thermal unit with quick insertion and release (less than 5 sec).
