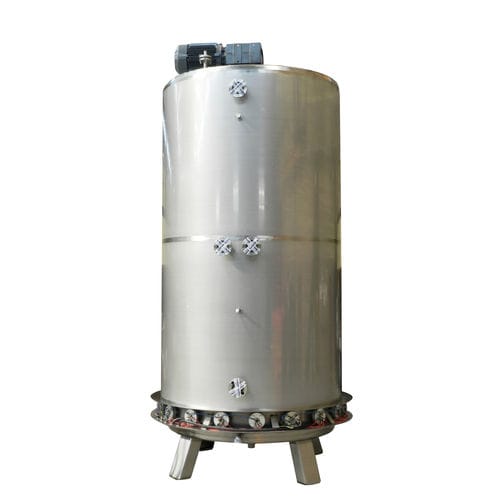

medium-viscosity liquid mixer / rotor / batch / for liquids
Isimsan Ltd. Sti.

{{requestButtons}}

Characteristics

  • Technology:

    rotor

  • Batch/continuous:

    batch

  • Application:

    for liquids

  • Application domain:

    for the food industry, for the chemical industry, for the cosmetics industry, for the pharmaceutical industry, construction

  • Other characteristics:

    stainless steel, vertical, single-shaft, variable-speed, cone-shaped, steel, combined heating/cooling, thermo-regulated, clean-in-place (CIP), for medium-viscosity liquids

  • Capacity:

    Max.: 50 m³ (1,765.73 ft³)

    Min.: 0.1 m³ (3.53 ft³)

Description

The Medium Viscosity Liquid Mixer is suitable for products for < 500 mPa * s. These is including products such as acetone (20°C), water (20°C) and olive oil (40°C).

The mixer has a mixer shaft in the center. On this shaft there are one or more consecutive blades. The mixing blades are selected customized. The drive of the agitator shaft is carried out through a gearmotor mounted on the top. In addition, the mixer shaft seal is provided with pad in case of atmospheric pressure conditions. The mixer can be equipped with baffle equipment. A manhole fitted above the lids allows the inside to be checked and cleaned. The upper part has connection flanges for gravimetric or pneumatic filling. The mixed product is discharged from the discharge flange.

Design:

•Body shape:cylindrical, conical
•Top / base shape:flat, dished
•Body size: 0,1 to 50 m³
•Material: carbon steel, stainless steel, duplex steel
•Surface: painted, brushed, polished, mirror polished
•Shaft: single shaft
•Blades:cross bar, grid, wing, etc.
•Rpm: 30 - 120


Optional parts:

•Sampling valves
•Mechanical seals
•Heating and cooling jacket
•Body manufactured as single or double walled (process dependent) model
•Inerserpentine cooling and heating system
•Various automation sensors
•Eyeglass with lighting
•Support frame, mounting brackets and platform
•Lift system
•Speed control
•Remote Control
•etc.

Applications:
Foods, animal feeds, chemicals, cosmetics, pharmaceuticals, construction materials, etc.
