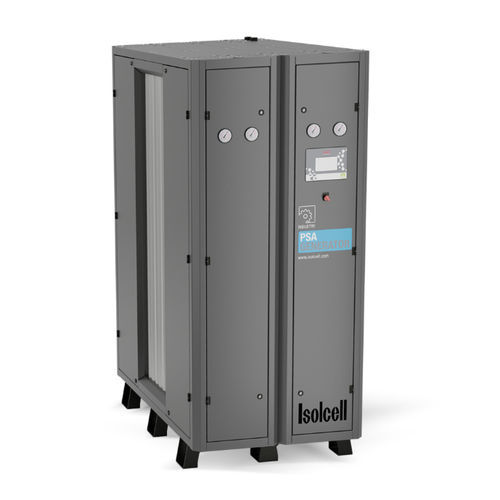

High-purity nitrogen generator D8

processindustrialfor the food industry

Double capacity compared to S series generators Nitrogen generators for industrial applications, purity from 95% to 99,999%. Perfect to produce large quantities of nitrogen, over 350 Nm3/h and up to 1.066 Nm3/h adding two expansion modules. Their modular structure allows the expansion of the production capacity of the system even after the start of the operations, simply by inserting other filtering columns into the single machine, or by adding external modules. In this case, thanks to our “multibanking” system, it will be possible to take advantage of the optimization of work cycles and power consumption. PSA technology Easy set up, only dry and filtered compressed air is needed Integrated oxygen analyzer, standard for every model Multibanking system, it is possible to increase nitrogen production simply by adding more banks. Easy maintenance, low service costs Quality: Class 1-4-1 ISO 8573.1 Solid < 0,1 µm Dew point < +3°C Oil < 0,01 mg/m³ Pressure: 6 - 10 bar (g) Temperature: 0….. +45°C Dew point: (2) < 40°C Nitrogen process tank: (3) 720 lt Power Supply: 230 V / 50 - 60 Hz 4 line display O2 Electrochemical Sensor 0-25 % O2 Zirconium Sensor 0-25 % O2 Zirconium Sensor 10-1000 ppm Dew point sensor with indication on display Flow meter with indication on display Back pressure control valve kit Compressed air pressure sensor Nitrogen buffer pressure sensor Process tank pressure sensor Exhaust silencer Super exhaust silencer extern mounted Analog output 4-20mA (O2 level) Modbus RTU Modbus RS485/USB serial converter Profibus connection convert Canbus connection convert Ewon (webserver + sms alarm + data logging)
