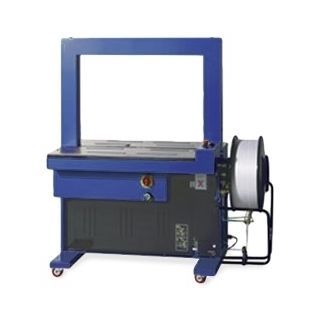

Automatic strapping arch machine equipped with steel idler roller working-plate to make the product sliding easy, with automatic strapping operated by a pedal, button or ball on the working-plate.
• Steel standard arch 850 x 600 mm customized on request
• Electronic Control Board
• Reset button included
• 24V electric control panel
• Control panel located on the operator-side
• Instant sealing through a warmed wire
• N° 3 power-off engines
• External adjustment of strap tension
• Machines are on wheels so they may be moved quickly from one task to another
• Options on request: double pedal, double press device for special applications, 380 V – 3 Ph voltage
• The machine works with PPL and PET strap or metallic strap.
• Power supply: 230 V – 1 Ph – 50 Hz
• Working-plate height: 810 mm
• Strap tension: 7 ÷ 70 kg
• Strap width: 9 – 12 – 15 mm
• Internal roll diameter: 200 – 280 mm
• Minimum product dimensions W x H: 100 x 30 mm
• Output: 26 pcs/min
