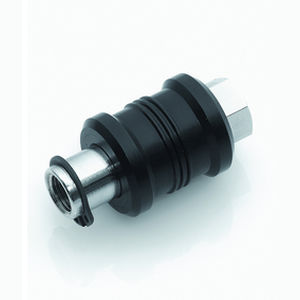

Slide valve 6060 series
manualflow regulatorflow control

slide valve
slide valve
slide valve
Add to favorites
Compare this product


Characteristics

Type
slide
Operation
manual
Function
flow control, flow regulator
Media
for compressed air
Body
nickel-plated brass, aluminium
Other characteristics
ISO, DIN, bidirectional, unidirectional
DN

0.125 in, 0.25 in, 0.375 in, 0.5 in

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 70 °C
(158 °F)

Flow rate

Min.: 700 l/min
(184.92 us gal/min)

Max.: 7,500 l/min
(1,981.29 us gal/min)

Description

– Throttle and non-return valves with various tube connection options – Brass, aluminium and plastic throttle valves – For various applications Operating temerature -10°C to +70°C 0°C to +70°C Non-return valve, Quick exhaust valve Valves in general Flow regulators – with banjo body – made of plastic – block shaped Bidirectional flow regulators, pressure control valve, pneumatic switch, slide valve ipso 032, 033 Quick exhaust valve VSR Materials Body, brass, nickel-plated (Ms58) Body, plastics Body, aluminium O-Ring, NBR Sealing, plastics Membrane, plastics Flow regulators with banjo bodies, straight unidirectional connection, non-return valves, slide valve, quick exhaust valve Flow regulators 041, 042, 043 Unidirectional flow regulator (block shaped) Valves in general Valves in general Quick exhaust valve Threads cyl. threads DIN EN ISO 228 con. threads DIN EN ISO 10226 (DIN 2999) metr. threads ISO 261 Medium Lubricated and non-lubricated compressed air
