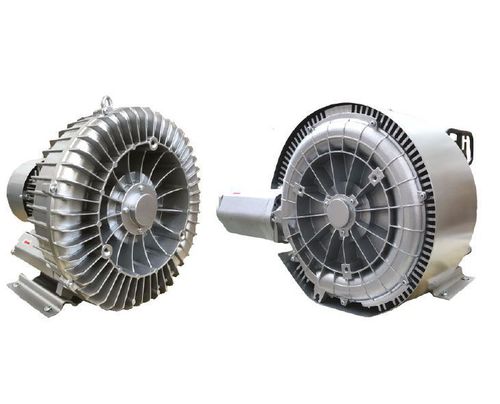

Air blower SC942PF
side-channelsingle-stagefor vacuum

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Number of stages
single-stage
Applications
for vacuum, conveying, cooling, drying, filter, for food applications
Other characteristics
aluminum, oil-free
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 2,300 m³/h
(81,223.73 ft³/h)

Operating pressure

Min.: 0 mbar
(0 psi)

Max.: 250 mbar
(3.626 psi)

Description

SC942PF The construction of the side channel blowers is based on the lateral ducts principle. The blowers can operate either as exhauster or compressor fans and are designed for continuous service. Full die-cast aluminium construction grants the maximum sturdiness and flexible operation. No lubrication is needed since there is no contact between static and rotating parts and NSK bearings are permanently pre-lubricated. Dedicated silencers help to achieve a low noise level. Capacity Max m3/h 1900 2300
