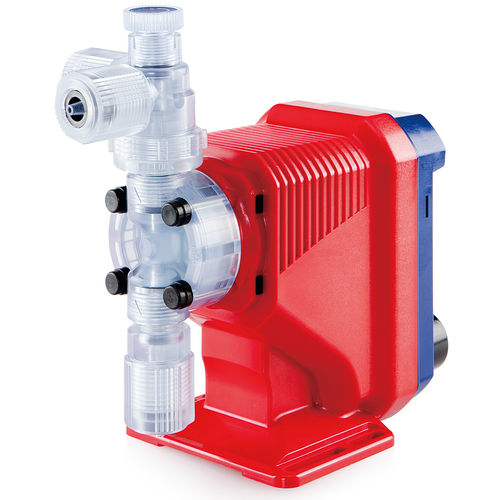

Chemical pump EJ-R serieselectricdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- chemical process, injection
- Flow
Min.: 1.14 l/h
(0.30116 us gal/h)Max.: 4.8 l/h
(1.26803 us gal/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 12 bar
(174.045 psi)- Power
15 W
(0.02 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Length
219 mm, 220 mm
(9 in, 9 in)- Width
100 mm
(3.94 in)- Height
194 mm, 195 mm
(7.64 in, 7.68 in)- Weight
1.5 kg
(3.31 lb)
Description
The EJ Series provide precise chemical injection at a chemical injection with an economical cost.
Universal voltage capability enables operation from 100 – 240 VAC in virtually all countries.
The EJ Series are compact, simple to operate and have outputs to 4,8 l/h and a maximum pressure of 12,0 bar.
The EJ Series operate at 360 strokes-per-minute, providing high resolution chemical feed and high turndown capability. Most competitive products operate at slower speeds, resulting in slug feeding, accelerated diaphragm wear and poor feed control.
