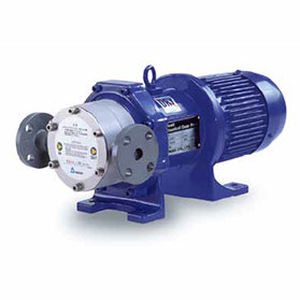

Chemical pump GM-V seriesmagnetic-drivenormal priminggear
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Priming
- normal priming
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- discharge, metering, injection
- Other characteristics
- corrosion-resistant, seal-less
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 23 l/min
(6.07596 us gal/min)- Pressure
0.5 MPa
- Power
0.37 kW, 0.4 kW, 0.75 kW
(0.5 hp, 0.54 hp, 1.02 hp)- Length
424 mm, 529 mm
(17 in, 21 in)- Width
160 mm, 178 mm, 249.5 mm, 279 mm
(6.3 in, 7.01 in, 9.82 in, 10.98 in)- Height
188 mm, 258 mm
(7.4 in, 10.16 in)
Description
Iwaki's Chemical Gear Pump GM-V is an internal gear pump made of highly corrosion-resistant materials. During pump operation, liquid does not come into contact with any of the pump's metallic parts.
A magnet drive mechanism ensures that no liquid solution leaks from the pump. Thus, the GM-V safely handles most corrosive liquid chemicals, including acids and alkalis. Since the GM-V is pulsation-free and features precise discharge output, this pump is ideally suited to metering injection without pulsation.
