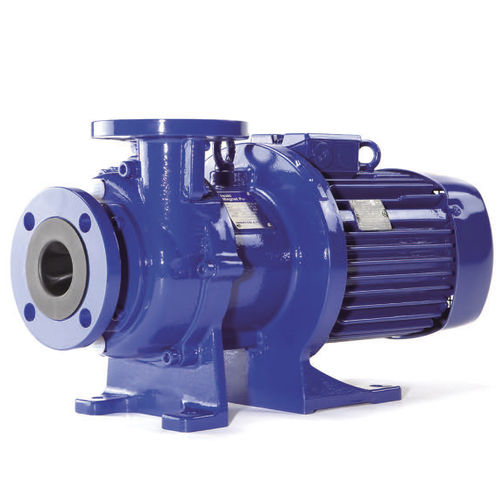

Chemical pump MXM series
airmagnetic-drivecentrifugal

chemical pump
chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, air
Operation
magnetic-drive
Technology
centrifugal
Mobility
stationary
Domain
industrial, chemical
Applications
transfer, process, chemical process
Material
cast iron, ceramic
Protection level
chemical-resistant
Other characteristics
compact, suction, dry, corrosion-resistant, reinforced
Flow

Min.: 70 l/min
(18.49204 us gal/min)

Max.: 600 l/min
(158.50323 us gal/min)

Head

Min.: 0 m
(0'00" )

Max.: 30 m
(98'05" )

Power

Min.: 1.5 kW
(2.04 hp)

Max.: 4 kW
(5.44 hp)

Fluid temperature

Min.: -10 °C
(14 °F)

Max.: 105 °C
(221 °F)

Length

320 mm
(13 in)

Width

Min.: 150 mm
(5.91 in)

Max.: 260 mm
(10.24 in)

Height

Min.: 175 mm
(6.89 in)

Max.: 274 mm
(10.79 in)

Weight

Min.: 8.5 kg
(18.74 lb)

Max.: 15 kg
(33.07 lb)

Description

New generation of mag. drive chemical process pumps With the MXM series a new generation of mag. drive chemical pumps complete the line-up of our world wide proven process pumps. By the non contact system in conjunction with the self radiating construction the pumps better withstand difficult operating conditions and expand as well as safety and durability. Self radiating construction (pat. pend.) Through the heat dispersion holes, between impeller and magnet capsule, force the liquid to circulate around spindle and bearing. Thus thermal deformation and melt are prevented. Non contact system The MXM pumps have a special construction to prevent contact between bearing and rear thrust ring, even if the pumps run dry or on suction side is air ingress. The usual damages through heat generation are therefore prevented. Exeptional chemical resistance As wet end materials only materials with best chemical resistance such as carbon fibre reinforced ETFE and fine ceramic are employed. For the operation in heavy duty chemical process applications the pumps have an external casing made of high strenght ductile cast iron.
