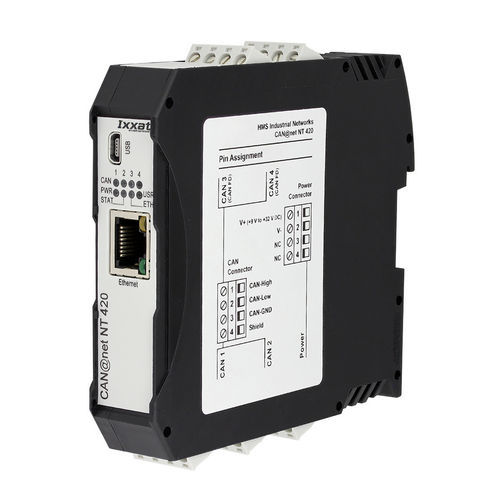

Industrial gateway CAN@net NT series
securityEthernetUSB

industrial gateway
industrial gateway
industrial gateway
industrial gateway
Add to favorites
Compare this product


Characteristics

Type
industrial, security
Network
Ethernet, USB, MQTT, CAN
Other characteristics
IP20, bridge
Transfer rate

Max.: 1,000 kb/s

Min.: 5 kb/s

Description

The CAN@net NT is offered in three variants, as CAN@net NT 100 with one classic CAN channel and D-Sub 9 connector, as CAN@net NT 200 with two classic CAN channels and as CAN@net NT 420 with four CAN channels, of which two channels can be switched between CAN and CAN FD. All devices offer three operation modes and can be used as a PC interface as bridge and gateway. Features Up to four independent CAN channels (2 CAN FD channels) Powerful filter, ID translation, data mapping and multiplexing functionality MQTT support for an easy cloud connection (publisher and subscriber) Execution of pre-defined actions using event-triggered "Action Rules" Programming of any kind of action rules using LUA Windows configuration tool for easy configuration via USB or Ethernet Configurable security levels for device access (configuration or firmware upload) Designed for high performance in industrial environments Benefits Easy coupling of CAN and CAN-FD systems and devices Bridging of large distances and easy remote system access using Ethernet Cost savings due to simple wiring Allows system expansion and tree/star topologies Increased system reliability Line protection by galvanic isolation
