bulk material screener / for powders / for pellets / laboratory

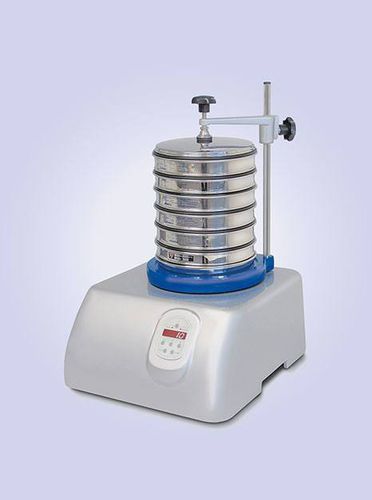

JEL 200-II J. Engelsmann AG



  • Material:

    for bulk materials, for powders, for pellets

  • Applications:



Short Description

- 110 W
- 15 mm stroke of the vibrations plate
- speed 270 rpm
- standard voltage: 230 V / 50 Hz (special voltage is possible upon request)
- noise level according to DIN 45635: approx. 70 dB(A)
- can be used with 8 test sieves, each 25 mm high, plus cover and bottom our with 4 test sieves, each 50 mm hight, plus cover and bottom
- net weight without test sieves: approx. 24 kg
- net weight with test sieves: approx. 28 kg
- dimensions: approx. 410 x 380 x 630 mm

Range of Application

The unit serves to analyse dry powdery to coarse grained materials. By using sieves with different mesh openings respectively perforations, the material sample is almost tolerance-free classified into its grain composition. The achieved reproducible values provide information making it possible to draw conclusions for milling, grinding and other processes.

Convincing facts

- easy handling
- speed and stroke optimized based on decades of experience
- wide range of test sieves
- simple exchange of the test sieves
- easy cleaning
