Vandal-proof telephone / weather-resistant / waterproof / rugged

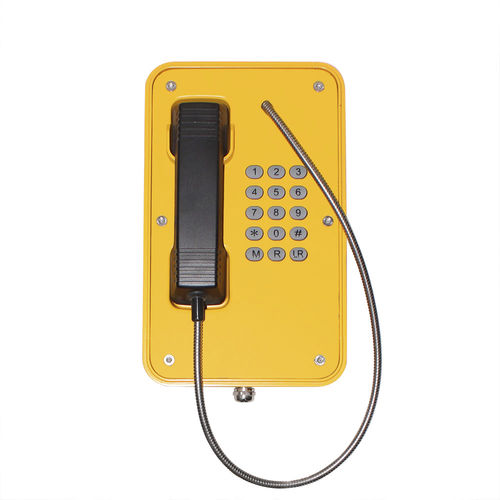

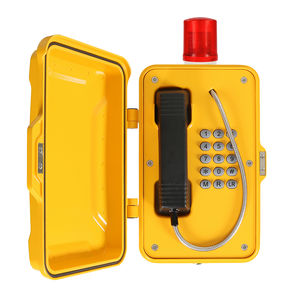

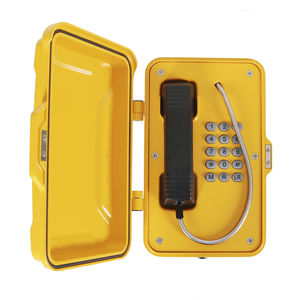

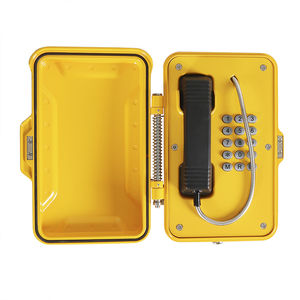

Special Environment Telephones/Industrial Phone JR103-FK J&R Technology Ltd

Characteristics

  • Protection level:

    vandal-proof, weather-resistant, waterproof, rugged, corrosion-resistant, fireproof, IK10

  • Network:

    analog, VoIP, GSM

  • Other characteristics:

    emergency, wall-mounted, handheld, auto dial, for harsh environments, outdoor

  • Applications:

    for railway applications, for tunnels, for highways, for marine applications, for underground mining, firefighter, taxi, industrial

  • Sound level:

    Min.: 80 dB

    Max.: 90 dB

    80 dB

Description

Weather Resistant Telephones/hazardous area phones

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

FEATURES

Standard Analogue phone
Robust construction, Vandal resistant
All weather protection IP66
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Various mounting option
Can be programmed remotely by tone phone or locally via keypad
Hotline Telephone or Full keypad with memory, 0-9 buttons can be programmed as speed dial button.(Optional)
“LR” button for last number redial
“R” for flash recall
“M” for muting
Wall mounting, Simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered (Analogue)
CE, FCC, ISO9001, RoHS compliant
TECHNICAL SPECIFICATIONS
Temperature
Operating: -30°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Dialing
MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
Non-volatile memory
Telephone line powered
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC,ISO9001,ROSH compliant
