Analog telephone / VoIP / IP65 / IP54
JR301-2B-IW J&R Technology Ltd

Characteristics

  • Network:

    analog, VoIP

  • Protection class:

    IP65, IP54

  • Applications:

    for railway applications

  • Other characteristics:

    wall-mounted, handsfree, stainless steel, emergency, vandal-proof

  • Sound level:

    80 dB

Description

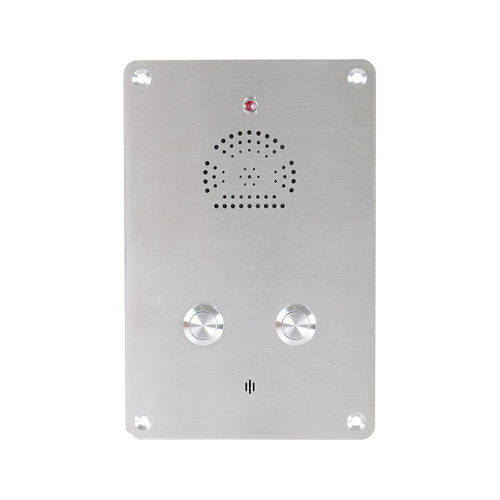

Vandal Resistant Telephone/Rugged Telephone

The Vandal Resist Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals, outside buildings, gate entry, etc.

FEATURES

VoIP/SIP,Aavailable for Standard Analogue phone,GSM Version
Robust housing, constructed of stainless steel
Hands free operation
Dual button for speed-dialing (PPT)
Can be programmed remotely by tone phone
Non-volatile memory
In wall mounting, simple installation
Weather protection IP54-IP65
4 X Tamper proof screws for mounting
Fast-fit terminal connection
DC 5V powered or PoE
Connection: RJ45 Ethernet socket through IP67 plug connector.
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
CE, FCC,ISO9001,ROSH compliant

Temperature
Operating: -40°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 90 dBA @ 1 metre typical
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Dialing
MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
