Vandal-proof telephone / waterproof / IK10 / weather-resistant
JR101-FK-Column mounting J&R Technology Ltd

Characteristics

  • Protection level:

    vandal-proof, waterproof, IK10, weather-resistant

  • Network:

    analog, VoIP, SIP, IP, GSM

  • Other characteristics:

    help point, handheld, with protection door, for harsh environments

  • Applications:

    for railway applications, for tunnels, for marine applications, for highways, for underground mining, firefighter

  • Sound level:

    Min.: 80 dB

    Max.: 95 dB

Description

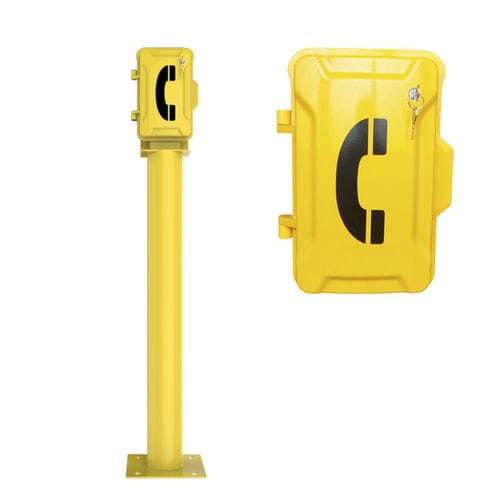

Outdoor & Weather Resistant Telephones Pillar

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

FEATURES

Standard Analogue,VoIP/SIP,GSM phone available
Robust construction, Vandal resistant
All weather protection IP66-67
with Column mounting,with door lock
Membrane Keypad / Armoured Cord, Heavy Duty Handset
Magnetic reed hook switch to reduce parts subject to wear
Encapsulated circuitry impervious to water and particles
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
DC 5V powered or PoE
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC,ROSH compliant
