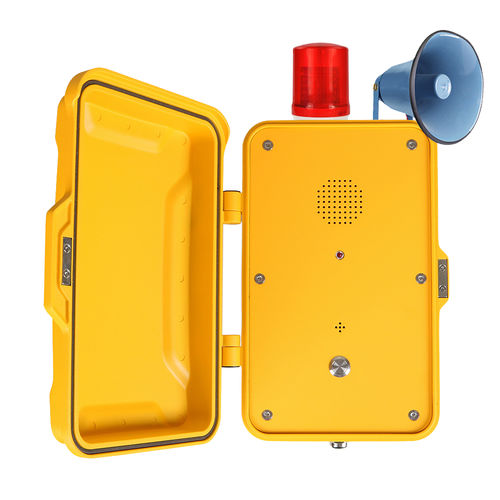

Analog telephone / VoIP / IP67 / for railway applications
JR102-SC-HB J&R Technology Ltd

Characteristics

  • Network:

    analog, VoIP

  • Protection class:

    IP67

  • Applications:

    for railway applications, for tunnels, for marine applications, for underground mining, industrial, firefighter

  • Other characteristics:

    emergency, weather-resistant, wall-mounted, hands-free, rugged, with loudspeaker, with protection door, with flashing beacon, with indicator lights

  • Sound level:

    Min.: 80 dB

    Max.: 120 dB

    90 dB

Description

Emergency Telephones/Heavy Duty Telephone

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.Ideal for Metro,Railway,Highway side,Marine Mining,Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

Feature:
Standard Analogue phone,Available for VoIP Phone,GSM Phone
Robust construction, Vandal resistant
All weather protection IP67
Equiped with hron(110~120dB) and beacon, the horn can broadcast remotely for notification,it works after 1-9 rings (adjustable), shut down when handset lifted or call finished. The LED Red beacon begins to flash when ringing or in use, attracting attention to the phone when call comes, it could be very useful in the noisy environments.
AC/DC Powered
Surface mounting,Simple installation
Magnetic reed hookswitch,no moving parts
Fast-fit terminal connection
Handsfree Operation
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Connection: RJ45 Ethernet socket through IP67 plug connector.
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Electret noise reducing microphone for clear communication Service
CE, FCC,ISO9001,ROSH compliant
