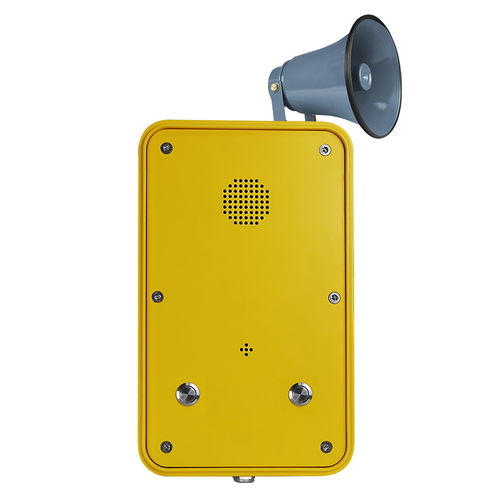

Analog telephone / VoIP / IK10 / IP67
JR104-2B-H J&R Technology Ltd

Characteristics

  • Network:

    analog, VoIP

  • Protection class:

    IK10, IP67

  • Applications:

    for railway applications, for tunnels, for marine applications, for underground mining, industrial, firefighter, taxi

  • Other characteristics:

    emergency, vandal-proof, weather-resistant, wall-mounted, hands-free, for harsh environments, outdoor, rugged, corrosion-resistant, fireproof, with loudspeaker

  • Network:

    Ethernet

  • Sound level:

    Min.: 110 dB

    Max.: 120 dB

Description

Emergency Telephones/Heavy Duty Telephone

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.Ideal for Metro,Railway,Highway side,Marine Mining,Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

Feature:
Standard Analogue phone,Available for VoIP Phone,GSM Phone
Robust construction, Vandal resistant
All weather protection IP67
Equiped with hron(110~120dB) and beacon, the horn can broadcast remotely for notification,it works after 1-9 rings (adjustable), shut down when handset lifted or call finished.
AC/DC Powered
Surface mounting,Simple installation
Magnetic reed hookswitch,no moving parts
Fast-fit terminal connection
Handsfree Operation
Two Call Buttons
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Connection: RJ45 Ethernet socket through IP67 plug connector.
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Electret noise reducing microphone for clear communication Service
CE, FCC,ISO9001,ROSH compliant
