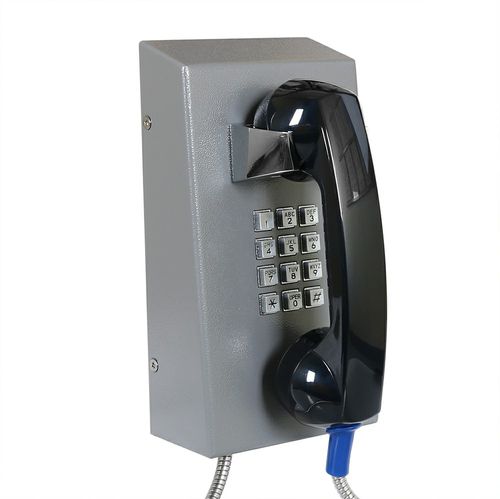

analog telephone / VoIP / IP65 / IK10
JR201-CB J&R Technology Ltd



  • Network:

    analog, VoIP

  • Protection class:

    IP65, IK10

  • Applications:

    for railway applications, for tunnels, roadside, for marine applications, for underground mining, industrial, retail banking, taxi station

  • Other characteristics:

    vandal-proof, emergency, wall-mounted, handheld, waterproof, auto dial, outdoor, rugged, corrosion-resistant, fireproof, ringdown

  • Sound level:

    Min.: 75 dB

    80 dB

    Max.: 90 dB


Auto-dial Phone/Automatic Dialers

This Telephone is housed in vandal resistant steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, inside and outside building etc.


Standard Analogue,VoIP/SIP,GSM phone available
Weather protection IP65
Tamper resistant fixings
Simple installation
Magnetic hookswitch
Fast-fit terminal connection
Telephone line powered for Analogue Phone
DC 5V powered or PoE for IP Phone
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
SIP (Session Initiation Protocol) RFC3261
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Non-volatile memory
Weatherproof and corrosion resistant handset
Stainless steel armoured or black curly handset cord
RJ45 connector for IP Phone
CE, FCC,ISO9001,ROSH compliant

Operating: -40°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 90 dBA @ 1 metre typical
Calculated to have an M.T.B.F. in excess of 50,000 hours using
MF (tone)

Unit size: 248*185*128(mm)
Carton size:340 *240 *160( mm)
Packaging materials: pearl cotton, carton
Net weight: 4KG
Gross weight: 5KG
