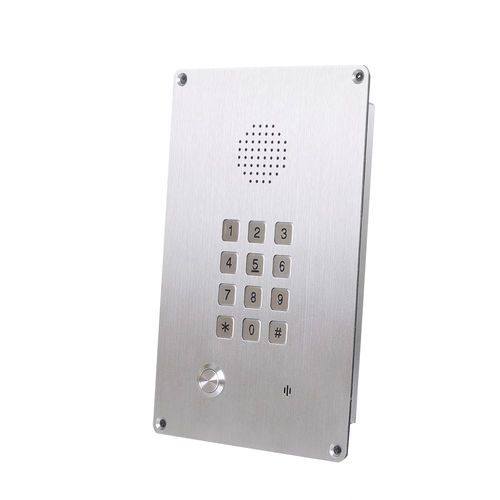

VoIP industrial telephone / analog / IP66 / rugged
JR309-FK J&R Technology Ltd



  • Network:

    VoIP, analog

  • Protection class:


  • Other characteristics:

    rugged, vandal-proof, emergency

  • Sound level:

    80 dB

    Min.: 75 dB

    Max.: 80 dB


Standard Analogue phone,Aavailable for VoIP/SIP,GSM Version
Robust housing, constructed of brushed stainless steel
Hands free operation
Vandal proof flat keypad
Can be programmed remotely by tone phone
Non-volatile memory
Flash mounting, simple installation
Weather protection IP65
4 X Tamper proof screws for mounting
Fast-fit terminal connection
Telephone line powered for Analogue phone
DC 5V powered or PoE
Connection: RJ45 Ethernet socket through IP67 plug connector.
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
CE, FCC,ISO9001,RoSH compliant

Operating: -30°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 90 dBA @ 1 metre typical
Calculated to have an M.T.B.F. in excess of 50,000 hours using
MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
