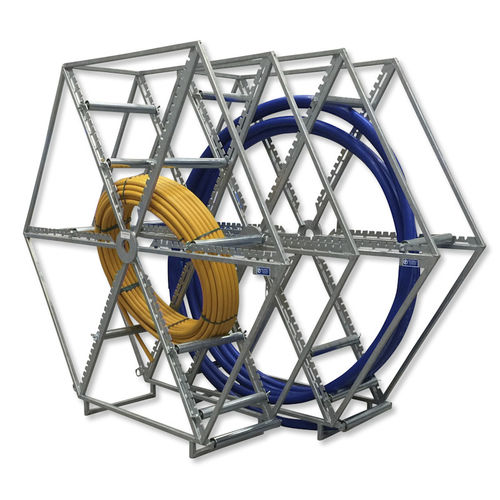

Cable drum unwinder RAW 2200

coilfor pipesroller

For reeling PVC tube coils of pipe dia. 32, 40, 50 and 63 mm. The frames may stationary be used or be transported within the a.m. cable drum transport trailer. Basic frame Welded out of stable quadrant hollow profiles. It is equipped with feet having ground plates for stability. On request transport wheel may be mounted. Loading the bundle Via a ramp the bundle is rolled into the frame. The guiding rollers have to be fixed according the inner and outer diameter of the bundle. Coil guidance The loaded tube coil is guided at the outer and inner side by six adjustable rollers each. The rollers are running in ball bearings and may be adjusted in 50 mm steps to the corresponding inner and outer diameter of the tube coil. Varnish The frame and the adjustable guiding rollers are galvanized. On requst, the frame can also be painted.
