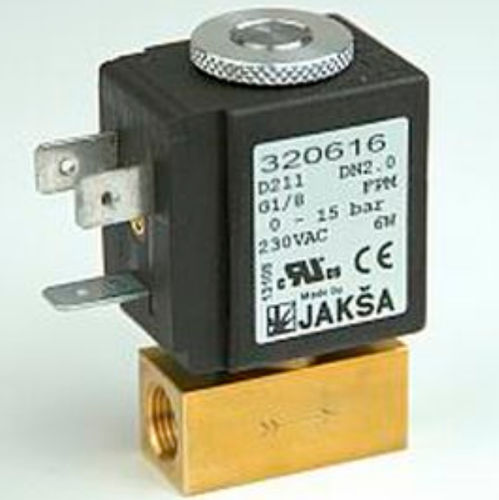

direct-operated solenoid valve / 2/2-way / NC / water
D210 series JAKSA SOLENOID VALVES

{{requestButtons}}

Characteristics

  • Control:

    direct-operated

  • Ports/positions:

    2/2-way

  • Function:

    NC

  • Medium:

    water, air

  • Body:

    brass, IP65

  • Pressure:

    Max.: 35 bar (507.6 psi)

    Min.: 0 bar (0 psi)

  • DN:

    0.125 in

  • Voltage:

    Max.: 230 V

    Min.: 24 V

Description

Internal parts: stainless steel
Seals: NBR, EPDM, FPM, PTFE
Fluid temperature: -10°C to +90°C (NBR); +130°C (EPDM, FPM, PTFE)
Ambient temperature: +55°C max
Viscosity: 21 mm2/s max.
Response time: 10 to 20 ms
Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
Duty cycle: continuous (ED100%)
Cycling rate: 1000 cycles/min max
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets
