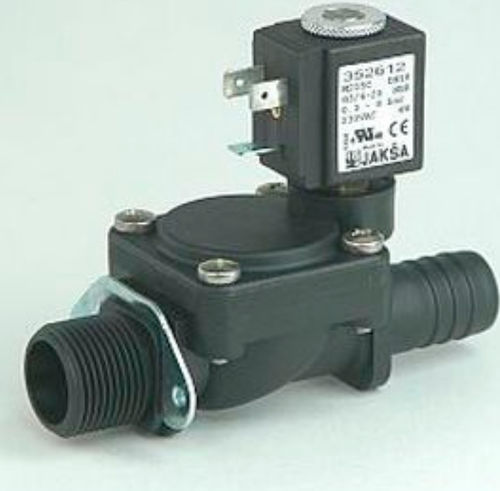

Pilot-operated solenoid valve M255
2-wayNCair

pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
pilot-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
water, air
Body
polyamide
Process connection
G 3/4
Other characteristics
ISO
DN

0.75 in

Voltage

24 V, 115 V, 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 100 °C
(212 °F)

Pressure

Min.: 0.3 bar
(4.4 psi)

Max.: 6 bar
(87 psi)

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM Viscosity: max 21 mm2/s Response times: opening 0.05 - 1 s; closing 0.5 - 4 s Duty cycle: continuous (ED100%) Cycling rate: 10 - 100 cycles/min Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.
