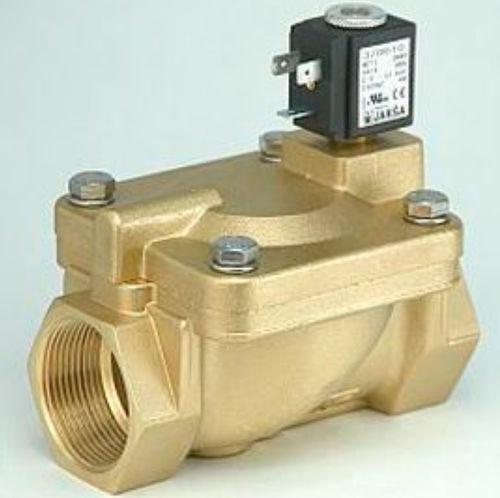

Diaphragm solenoid valve M271
pilot-operated2-wayNC

diaphragm solenoid valve
diaphragm solenoid valve
diaphragm solenoid valve
diaphragm solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
water, air
Body
IP65, brass
Process connection
G 1 1/2
Other characteristics
ISO, plug, diaphragm
DN

1.5 in

Voltage

Max.: 230 V

Min.: 24 V

Temperature

Max.: 100 °C
(212 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 12 bar
(174 psi)

Min.: 0.5 bar
(7.3 psi)

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM Viscosity: max 21 mm2/s Response times: opening 0.05 - 1 s; closing 0.5 - 4 s Duty cycle: continuous (ED100%) Cycling rate: 10 - 100 cycles/min Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.
