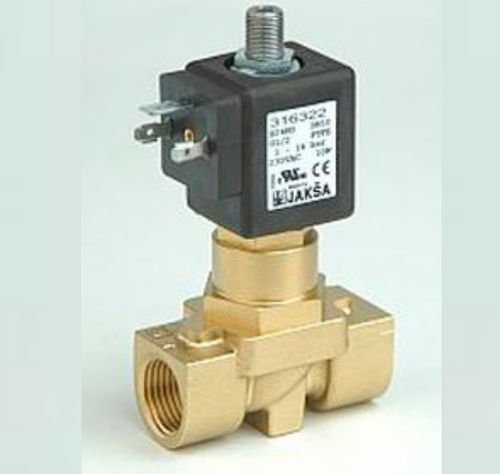

Pressure relief solenoid valve B24NO
pilot-operated2-wayNO

pressure relief solenoid valve
pressure relief solenoid valve
pressure relief solenoid valve
pressure relief solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NO
Medium
air
Body
IP65, brass
Process connection
G 1/2
Other characteristics
ISO, pressure relief, plug
DN

0.5 in

Voltage

Min.: 12 V

Max.: 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 110 °C
(230 °F)

Pressure

Min.: 1 bar
(14.5 psi)

Max.: 16 bar
(232.1 psi)

Description

Internal parts: stainless steel Seals: FPM, PTFE Ambient temperature: max +55°C Viscosity: max 21 mm2/s Response time: closing 10 - 30 ms Duty cycle: continuous (ED100%) Cycling rate: 10 - 100 cpm IP rating: IP65 (with plug to ISO 4400) Long term use in humid environment requires the use of sealing sets.
