Explosion proof rotary valve for pneumatic conveying
700 x 1000 mm, 410 m3/h, ATEX | ZSB series Jaudt Dosiertechnik Maschinenfabrik GmbH

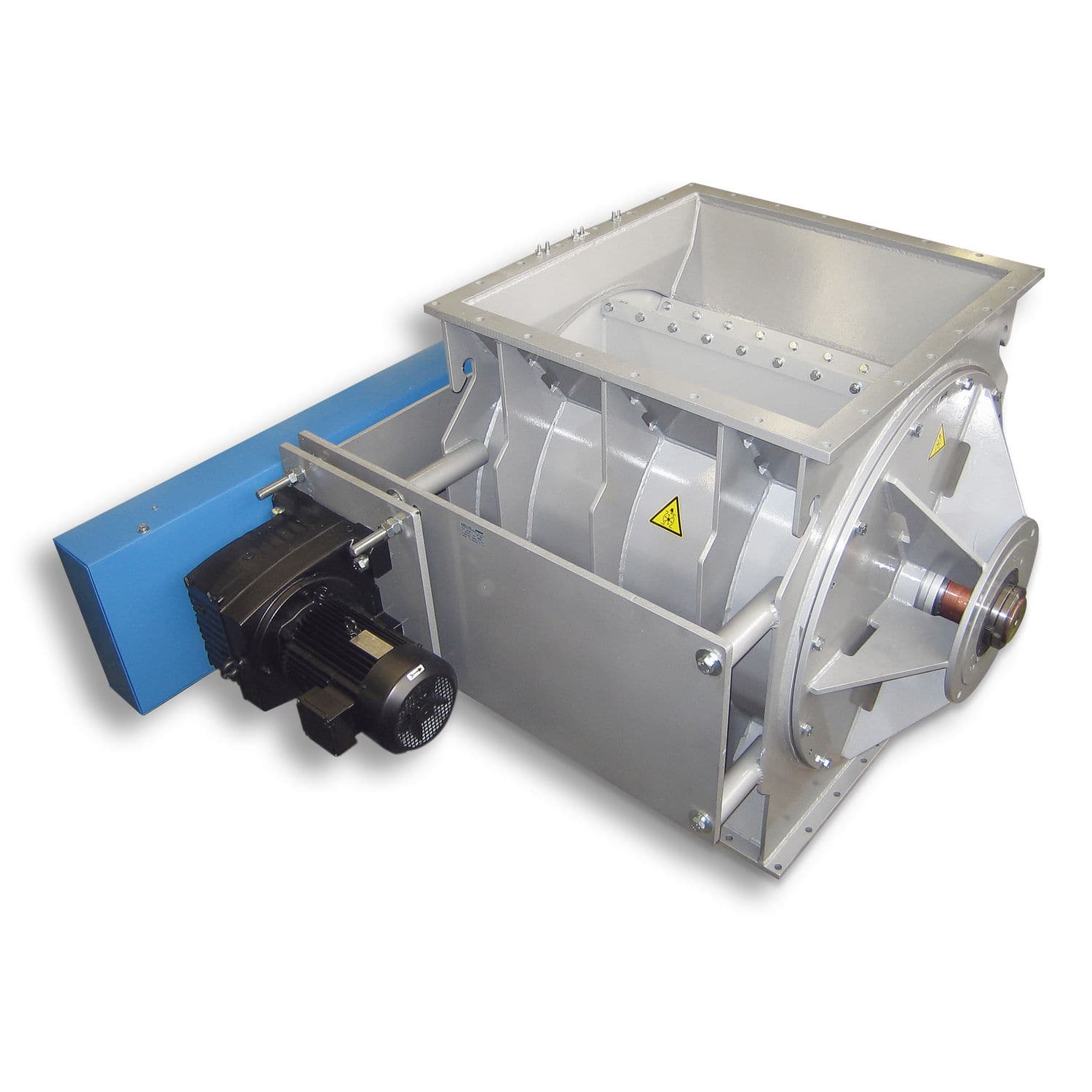

BREAKER FEEDER (ZSB)

Safe discharge from silos or bunkers, by the breaking of protruding blocks.

Technical details:

Nominal sizs ■ :
400x400, 500x500, 630x630, 700x700, 700x1000
other sizes on request

Capacity: (m³/h)
48 - 410

Materials:
- Housing / Bearing cover: structural steel, stainless steel, heat resistant steal
- Bucket wheel: structural steel, stainless steel, heat resistant steal
- Breaker bar: wear-resistant material
- Fixed breaker bar: wear-resistant material

Temperature:
T80, T250, T400

Bucket wheel
- WITH / WITHOUT boundry disks
- 8, 10 pockets

Bearing:
outboard bearings

Shaft seal:
- packing,
- purging- / barrier air connection

Transmission:
- chain drive
- slip on gear mechanism

Wear protection:
- hard-chromium-plated
- chrom-steel / and
- tungsten-carbide coating
