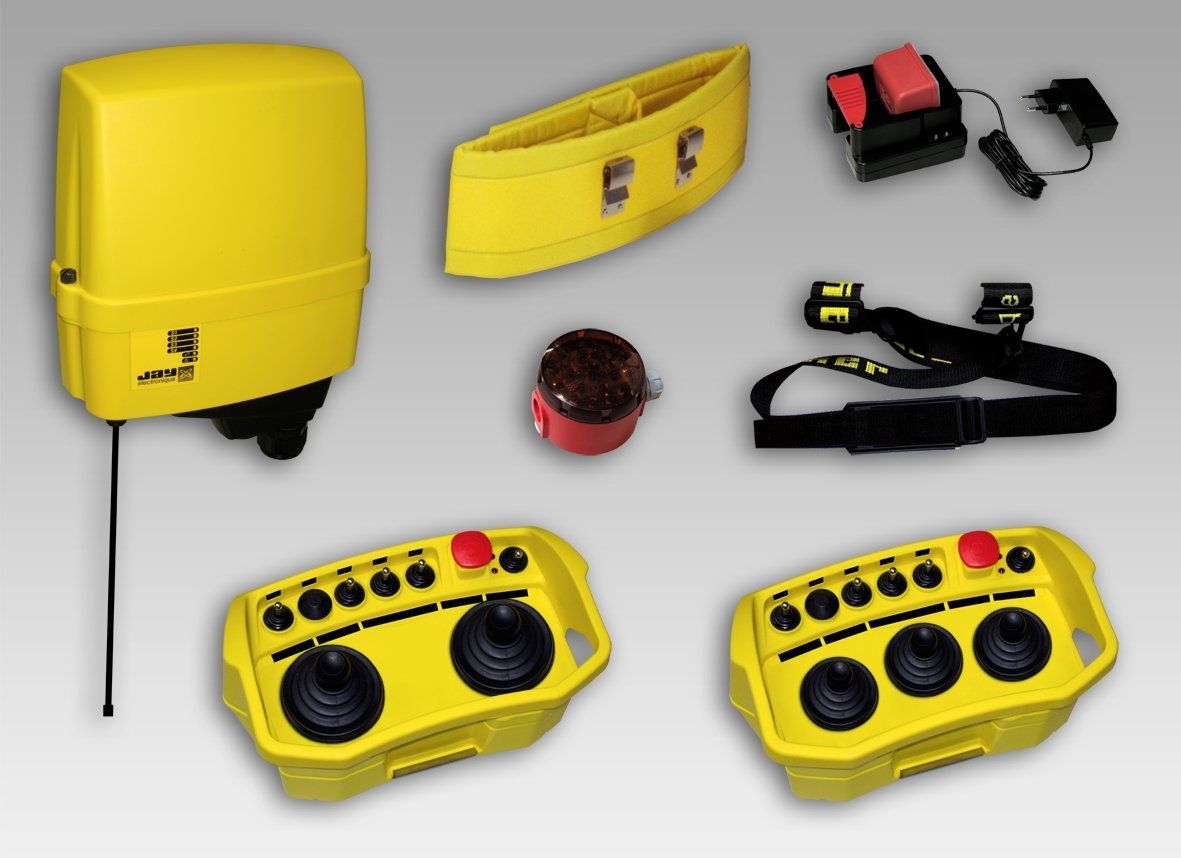

Manipulator type radio remote control
IP 65 | OMNICONTROL series
JAY Electronique
New range of radio remote controls with joysticks, OMNICONTROL Series.
This system integrates numerous configurations and possibilities in terms of :
* number of joysticks (2 or 3)
* type of joysticks (notches 1, 2, 3, 4 speeds or proportional, with adjustment on each direction)
* type of buttons for auxiliary functions (pushbuttons, selectors with 2 fixed positions, selectors with 3 fixed positions, selectors with 3 positions and automatic return)
* number and type of outputs (up to 25 function relays and 6 analogue outputs)
Designed to facilitate the operator's control tasks :
* ergonomic transmitters
* functions identified by pictograms
* adjustable carrying
* enhanced endurance of transmitters and fast, easy-to-replace plug-in battery
* 30 available frequencies in the 433/434 MHz band and 64 available frequencies in the 868/869 MHz band (10 mW)
The receiver is also very easy to install :
Compact receiver
Screw-type connection terminals
LCD display (current frequency, coding, activated outputs,...)
Additional function : Start-up by infrared validation
Safety :
* each transmitter/receiver set has its own specific code contained in a plug-in memory
* message quality is ensured by a high-level communication protocol
* joysticks and function buttons mechanically protected to prevent unintentional actions
* overload protection by fuses
* category 3 safety stop as per EN 954-1
* a passive shutdown device shuts down the system if the radio link is jammed
* a "dead man" function shuts down the transmitter after 5'30" if no command has been generated
