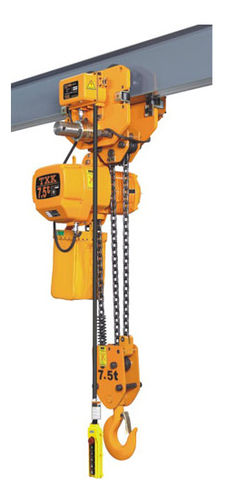

Electric chain hoist TXK SSDHL Series

TXK SSDHL series electrical chain hoist 7.5ton TXK SSDHL series design this type of electrical chain hoist to meet various requirements. The fixed type will be available comply with the suit axis, with electric trolley this kind of hoist can be flexible move horizontally. The SSDHL series hoists acquire the CE certification. Parameters: 1. Capacity: 7.5ton 2. Lifting height: 3 - 36 meters 3. Lifting speed: 1.8 m/min 4. Motor power: 3.0 Kw 5. Rotation speed: 1440 r/min 6. Insulation grade: F 7. Power supply: 3P 220V~690V 8. Control voltage: 24V / 36V / 48V 9.Spec. of load chain: 11.2 Material: 1. Shell: aluminum alloy Design features: 1. Shell: Light aluminum alloy shell which is light but hard. It shall be adopted for the use in the terrible work environment with a high heat dissipation rate. 2. Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply. 3. Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety. 4. Side magnetic braking device: It shall realize the instant brake in case of the power dump. 5. Chain: Japan made FEC80, ultra heat-treatable alloy steel chain. Application: Construction industry, automobile making, electric power industry, shipbuilding, logistics and so on.
