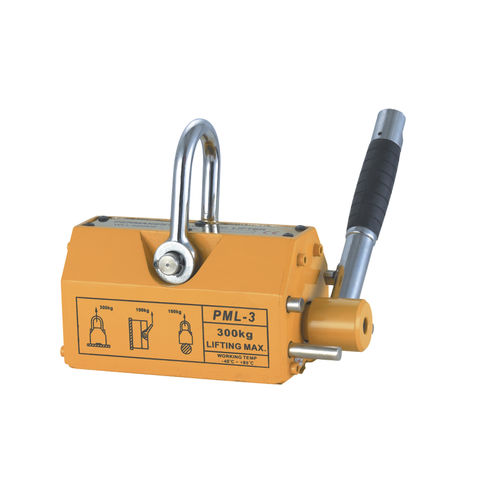

Electrically switched permanent magnetic lifter

handling

The permanent magnetic lifter can be used in a variety of industries for the transportation and lifting of steel, engine parts, semi manufactured goods and moulds, due to its natural magnetic force. Features: 1.The magnetic lifter’s highest pulling force is 3.5 times greater than rated lifting capability. 2.Light weight, ranging form 10-125kg. 3.Safe:No electrcity is needed to operate the magnetic lifter, once operated there is less than 1% residual magnetism. 4.The simple weitch and safety button design allows for one handed operation. 5.Large sizes availabe, output up to 6000kg. How to determine the right type of magnetic lifting for your application? 1.The capacity of lifting magnet determined by the thickness and surface quality of the component 2.Before operation it is necessary to find out the percentage or the steel thickness or the component and capacity curve 3.If the components surface roughness is less than 6.3um, the magnetic lifter surface gap will not exist, the lifter gap should be estimated.
