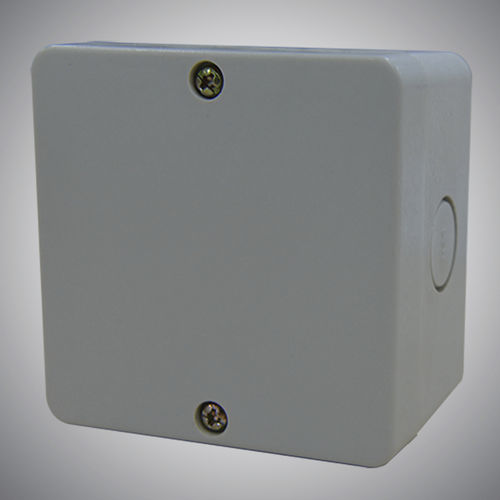

Wall-mounted junction box JL-S-080805FX
dust-proofwaterproofhalogen-free

wall-mounted junction box
wall-mounted junction box
wall-mounted junction box
wall-mounted junction box
Add to favorites
Compare this product


Characteristics

Mounting
wall-mounted
Protection level
dust-proof, waterproof, halogen-free, flame-retardant, IK 08, corrosion-resistant, IP67, UV-resistant, high-strength
Material
PC
Other characteristics
with knockouts
Length / diameter

80 mm
(3.1 in)

Width

80 mm
(3.15 in)

Description

◇ Products are made of high-strength industrial PC(halogen-free) which is corrosion resistance and has good insulation. ◇ Products is waterproof, dustproof. Protection grade: IP67. ◇ PC material has a high strength, strength grade: IK08. ◇ Products have good anti-ultraviolet ability. ◇ Products have good flame retardant ability, flame retardant: UL94-V-0. ◇ There are 5-pole built-in terminals in products with a cable diameter of 0.5-2.5mm² and Current 20A, voltage 690VAC. ◇ The cover and box are connected with two 304 stainless steel stainless steel screws which can be mounted on the wall through the bottom mounting holes.
