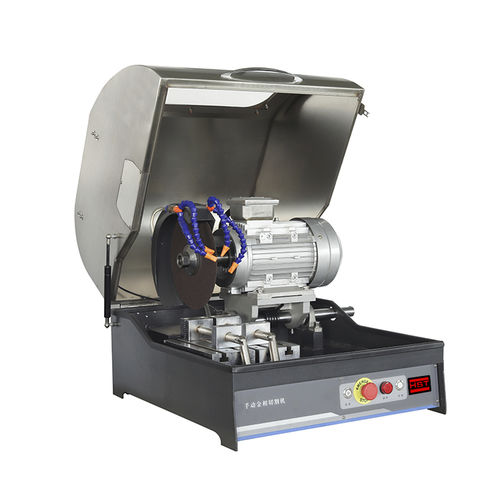

Rotary blade cutting machine SQ-80
for metalsamplemetallographic

rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
rotary blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Material
for metal
Product handled
sample
Applications
metallographic
Phase
three-phase

Description

Application: Model SQ-80 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges. Feature 1.Quick clamping vice. 2.LED Lighting system 3. 60L water cooling system 4.Fully enclosed stainless steel structure 2. Main specifications: ModelSQ-80 Max. cutting diameter80mm Cooling methodT-slot worktable, dual drive vises Outside cooling system Power supplythree phase four line (380v/50Hz) MotorY2-1001-2-2 2.2 kw Rotate Speed2800r/min Abrasive wheel¢250X2X32mm Cutting machine size230X240mm Dimension690×740×670mm Weight85kg
