1.Application

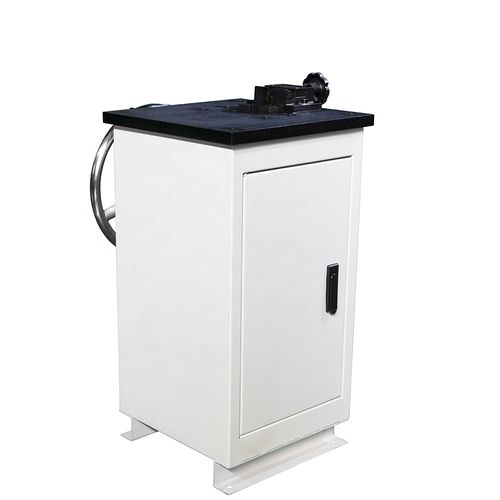

VU-1S Manual Notch Cutting Machine for Impact Specimen is used to cut notch in the impact test for petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, wind power generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
2. Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,GB229-2007
3.Main Technical Specifications:
Shape of sample notchV-shape(2 mm) or U-shape (2mm), only choose one
Sample size10×10×55mm (or 10×10×7.5mm ,
10×10×2.5mm)
Cutting modeManual
Broach materialW18Cr4V
Max. Dimension350×350×600mm
Weight100kg
