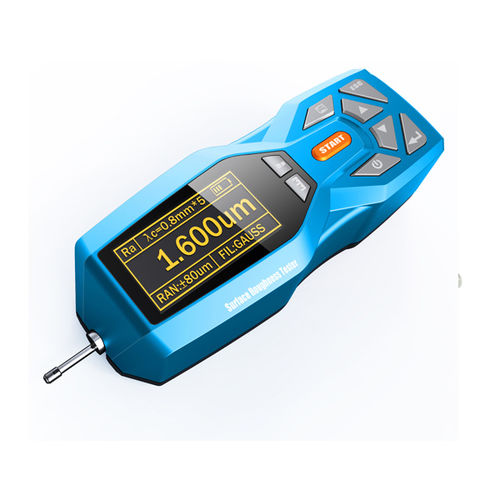

Surface roughness gauge 330digitalportable
Add to favorites
Compare this product
Characteristics
- Measured value
- surface roughness
- Technology
- digital
- Configuration
- portable
Description
Testing parametersRa, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
Measuring range (um)Ra: 0.005-16.000
Rz: 0.02-160.00
Sample length (mm)0.25, 0.80, 2.50
Evaluation length(mm)(1-5)L
Maximum drive stroke17.5mm/0.7inch
Indication accuracy0.001
Indication error±(7-10)%
Variability<6%
Data Storage100 groups
PowerRechargeable li-battery
Working temperature-20℃～40℃
Relative humidity<90%
Size158mmx63.5mmx46mm
Weight of Host0.3kg
