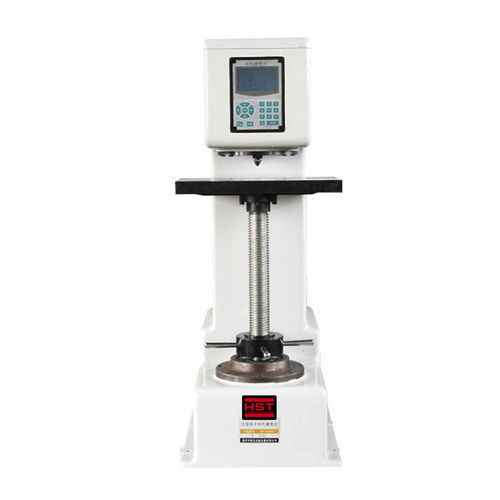

Brinell hardness tester HB-3000D benchtopmetalfor non-ferrous metals
Add to favorites
Compare this product
Characteristics
- Type
- Brinell
- Mounting
- benchtop
- Product applications
- metal, for non-ferrous metals, for laboratories
- Other characteristics
- LCD digital display, automatic
Description
1.Application:
It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys, etc.
2.Technical Parameter:
ModelHB-3000D
Measuring Range8-650HBW
Test Force612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N. (62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf)
Diameter Of Tungsten Carbide Ball2.5mm, 5mm, 10mm
Dwelling Time Of Test Force2-99s
Max. Height Of Test Piece390mm
Depth Of Throat200mm
Power Supply220V AC or 110V AC, 50 or 60Hz
Dimensions860x680x1250mm
Height Of Base400mm
WeightApprox. 400kg3.Features:
3.1.Automatic testing process, no human operating error.
3.2.High travel, large size work table.
3.3.Large LCD screen displaying for parameters setup, easy operation.
3.4.Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10.
