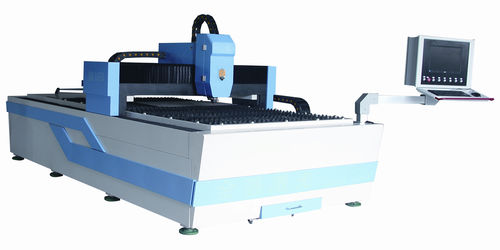

Fiber laser cutting machine JQ1530

for metalsheet metalCNC

JQ1530 fiber 1000 metal laser cutting machine is innovated by JQ, which has the advantages of simple structure, light weight, less welding, convenient processing, easy to install and operate. In addition, the machine can be packaged to one part, easy to transport by container. JQ1530 fiber 1000W metal laser cutting machine adopts imported rail and heavy racks from Taiwan, Japanese Panasonic servo motor and driver and American laser mech laser head. Features: 1. Linear guide 2. Vacuum system (filter optional) 3. Advanced design 4. Stable performance/ high-performance 5. High integration 6. Precise control 7. Stable operation 8. High-speed 9. Automatic 10. high-precision 11. Cost-effective 12. High performance-price ratio 13. Universal 14. Automatic collecting system 15. Streamlined design Technical Parameter --Model: JQ1530 Fiber-1000 --Working Area: 1500*3000mm --Number of axes：2-axis --X travel: 1500mm --Y travel: 3000mm --Sizes: large-format, medium size --Laser type: Fiber Laser Module --Laser Power: 1000W fiber --Driving Mechanism: Ball Screw & servomotor/ Heavy rack & servomotor --Positioning Accuracy: ≤±0.01mm --Repeatability Accuracy: ≤±0.01mm --Min. Line Width: 0.1mm --Smallest character: 1*1mm --Control type: CNC --Cooling Mode: Water Cooling Chiller --Power Supply Requirement: 380V/50Hz --Continuous Working Time: 24Hours --Equipment size: 450*220*195cm --Whole power consume: 8KW-12KW --Structure: gantry type --Max. Cutting Speed: 500mm/s --Max Thickness: 12mm (depend on different material) Application: stainless steel, carbon steel, metal sheet, thick sheet metal, aluminum, copper. Certificate： SGS, FDA, CE
